Chapter18 :블루투스 리모트 컨트롤

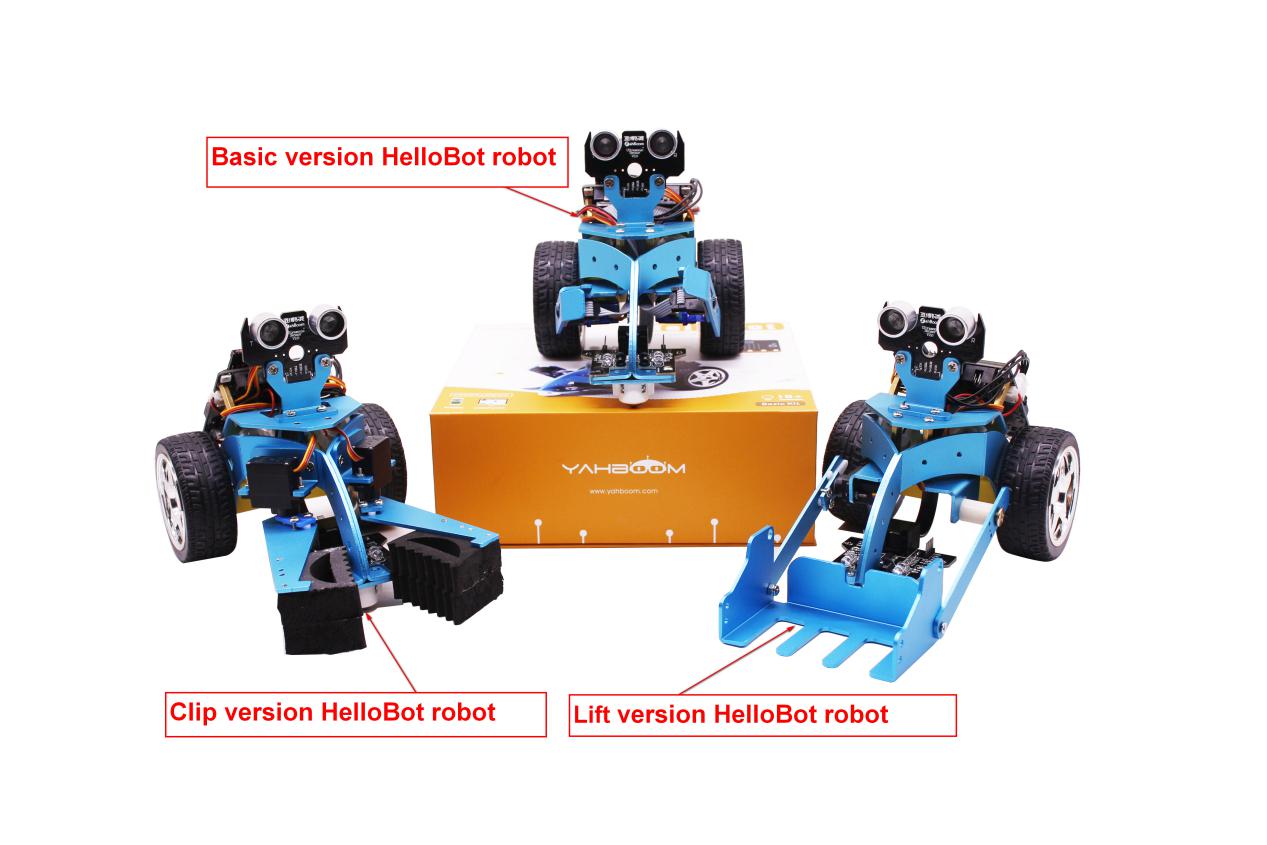

Case1: If your HelloBot is a Basic version HelloBot robot, you need to download the Bluetooth program [Basic version Bluetooth control];

Case2: If your car is a Clip version HelloBot robot, please download the Bluetooth program **[Clip version Bluetooth control]; **

Case3: If your car is a Lift version HelloBot robot, please download the Bluetooth program **[Lift version Bluetooth control]. **

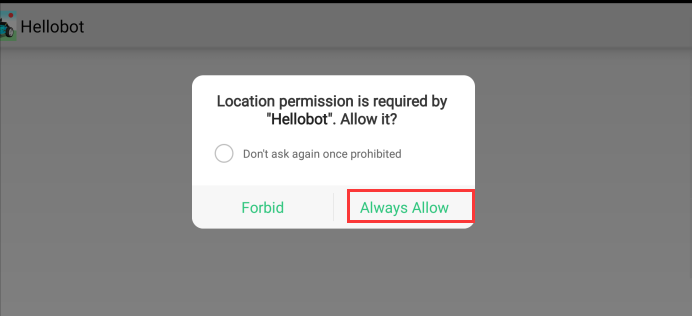

(1)At this time, you should open the mobile phone Bluetooth and open the application [HelloBot], if prompted some message please click [Allow], otherwise you will not be able to use this application. As shown in the following figure.

Bluetooth is automatically connected when the Mobile phone is near the robot. The indicator light of the Bluetooth module is not flashing after the connection is successful. As shown in the following figure.

(2)After successful connection,enter the main control page.

Part 1:

Part 2:

Part 3:

(2)--1 Mesh

When multiple HelloBot cars download the Bluetooth program, click “join team” to enter the formation. All the colorful lights of the car are green, indicating that the formation is successful. You can directly control the car to complete some actions, or you can directly click “exit team” to leave the formation.

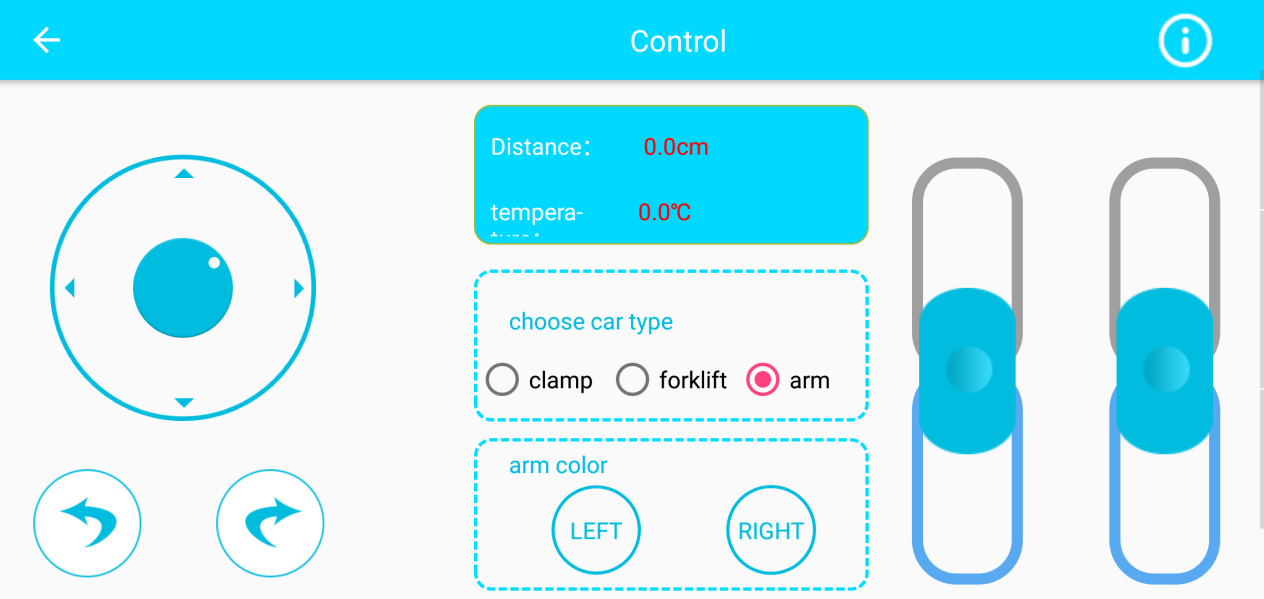

2. --2 Control

When controlling, you can choose three versions:

clamp(clip version),forklift(lift version),arm(Basic version).

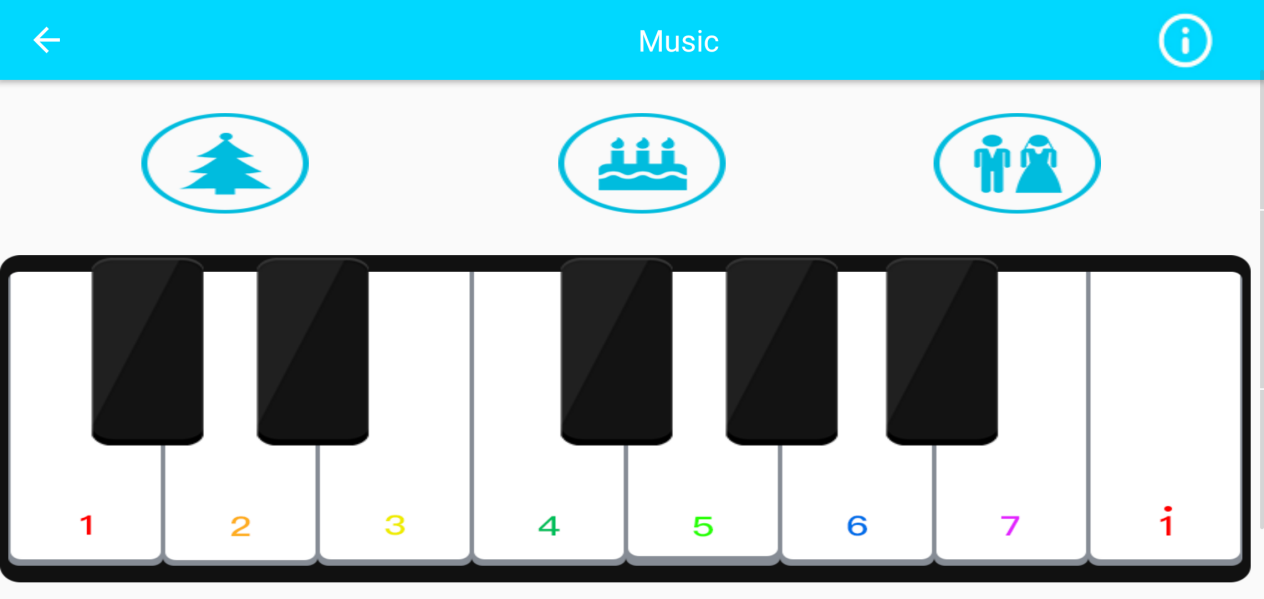

(2)--3 Music

(2)--3 Draw Line

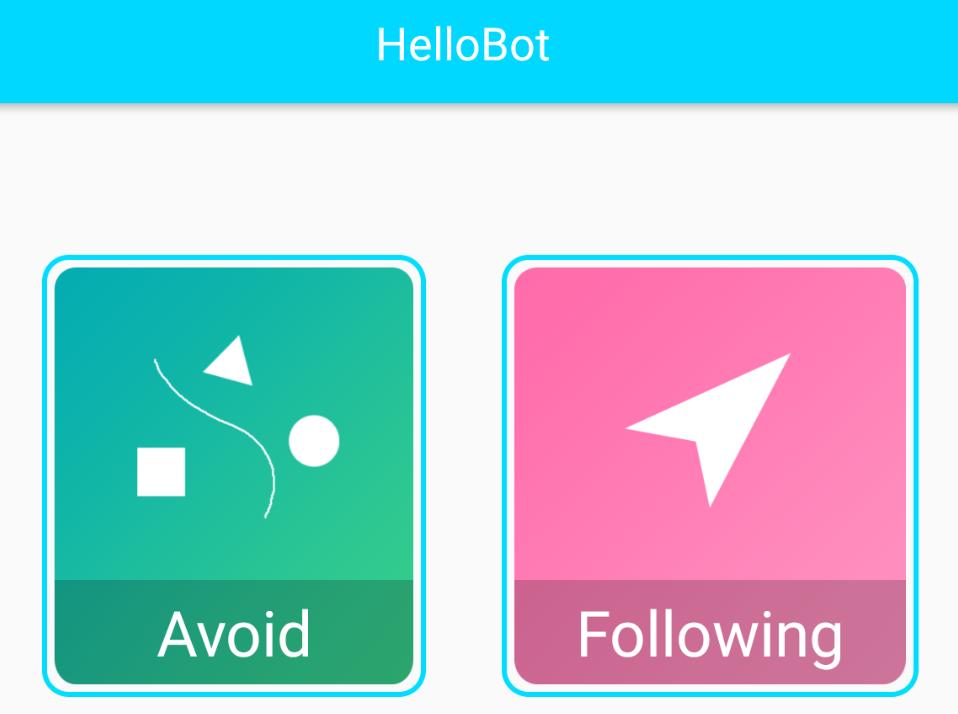

(3)Mode choice
