Chapter7 :부저¶
1.Preparation¶
1.You should learn about the position of the buzzer in the body of hellobot;
3.You should learn about the micro:bit pins connected to the buzzer in the schematic.

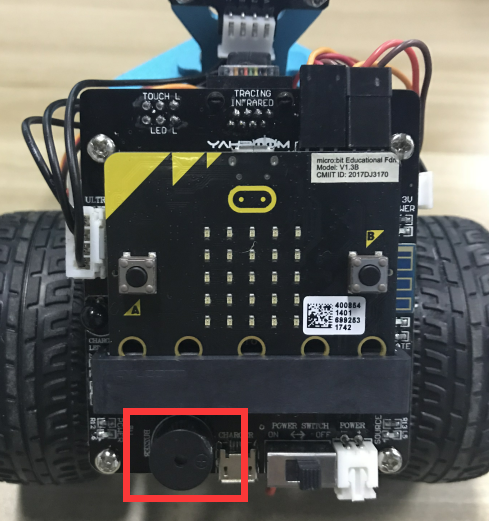

4-1-1 buzzer on arm of hellobot

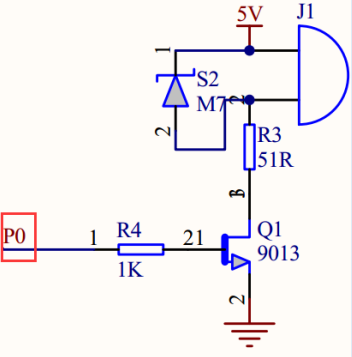

4-1-2 schematic

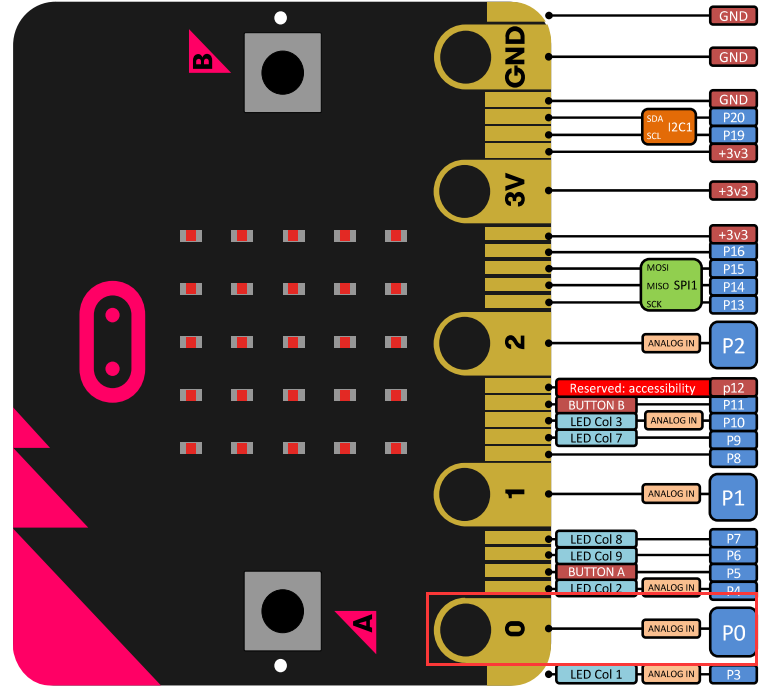

4-1-3 Pins of Micro:bit
From the schematic diagram in P4-1-3, you can see that the touch magic lights is connected to the P0 of the Micro:bit. You can use the blocks of music directly.
- Learning goals
In this course, we will study how to make HelloBot robot sing “Happy Birthday”
3.Programming
3.1 Programming online
1) You should use the USB cable to connect the micro:bit to the computer, at this point, the computer will have a micro:bit U disk. You need to open it, click micro:bit website, then entered the micro:bit website or you can enter the URL directly in your browser: http://microbit.org/
2) After entering the programming interface, you need to click Add package and copy the HelloBot package URL: https://github.com/lzty634158/HelloBot to the input field, click to confirm the add package. Then you can use the blocks of the HelloBot package.
3.2 Programming offline
- You can double-click to use it. As shown in the following figure.
2) After entering the programming interface, you need to click Add package and copy the HelloBot package URL: https://github.com/lzty634158/HelloBot to the input field, click to confirm the add package. Then you can use the blocks of the HelloBot package.
Note: The package only needs to be added once. If you have added packages in the previous lessons, this course does not need to be added repeatedly.

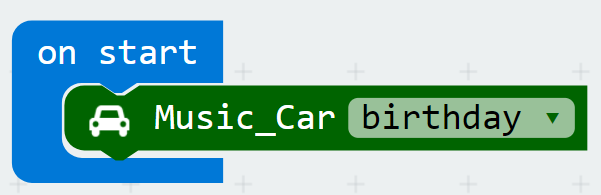

4-1-4 total program

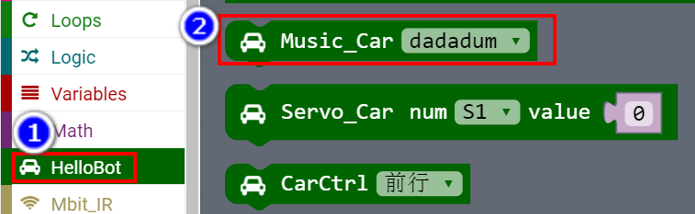

The locations of blocks in the total program are shown in the following figure.
4-1-5
4.Download programming
You need to make sure that the micro:bit development board is connected to the computer. Then you should click on the download in the lower left corner as shown in P 4-1-6 to download the program to micro:bit.
4-1-6
5.Phenomenon
After the code is uploaded. HelloBot robot will sing “Happy Birthday”.
